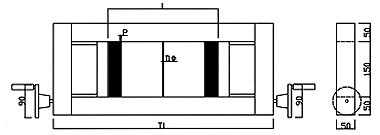

| TL |
Total length |
| l |
Workable width |
| N |
Number of Pins |
| P |
Pitch |
| DØ |
Pin diameter |
|
| |
| Minimum Pitch |
1.03 mm |
| Maxinum Number |
1500 |
| Expanding lebel |
About 30% |
| Standard (L) |
Workable Width (l) |
| 1800 Type |
1200 - 1500 mm |
| 2000 |
1400 - 1700 |
| 2200 |
1500 - 1850 |
| 2300 |
1600 - 2000 |
| 2400 |
1700 - 2100 |
| 2600 |
1900 - 2350 |
| 2800 |
2000 - 2500 |
|
|

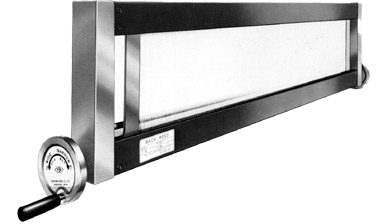

 BACK
REEDS
 Purpose
Back Reeds are mainly used for the warping of filament yarn. By using a combination of piano wire with mat hard chromium plating and double springs, the pitch and number of yarns be freely adjusted.
*** Futher information aviable upon request. ***
|
 |
