Expansion Board
A new back Reed for higher speeds and abrasion resistance

For Warpers

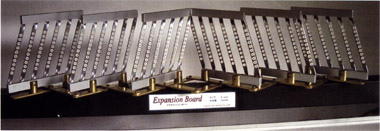

Installed and drawn in

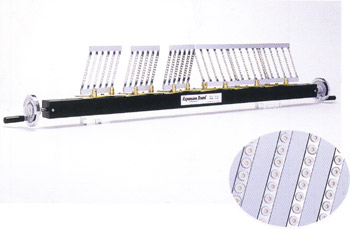

  Expansion Board

  This tool is for warping machines. It is designed specially for reducing abrasion.

  Eyelets used: YM - 99, Hole diameter: 1.8mm



  Eyelet board is expandable, allowing for pitch adjustment

  Eyelets are highly anti-abrasive ceramic

  Installed at the current location of the Back Reed no further adjustments necessary after installation



  Eyelet frames: 4 and 6 inch, 200 mm pitches available

  Expandability: Maximum 45% (varies with application)

  Eyelets: YM-99C (hole diameter: 1.8mm)


*** Futher information aviable upon request. ***
