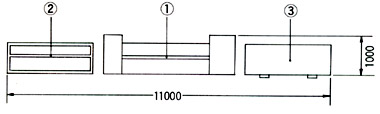

| 1 |

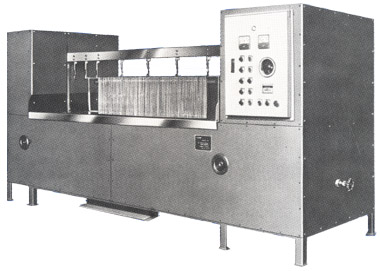

Automatic Heald Cleaning Machine |
| 2 |

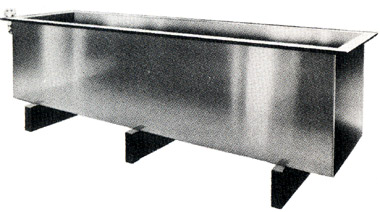

Sub-Cleaning Tank (Option) |
| 3 |

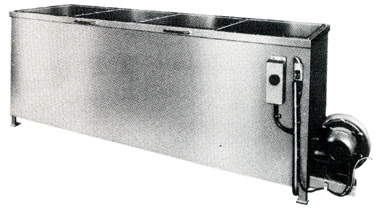

Dryer (Option) |
|
| |
 |
| Specifications |
| Cleaning |
Brushing & Washing |
| Cleaning Capacity |
30 - 40 pcs/hr |
| Electric Capacity |
3 phases 3 kW |
| Water Supply Capacity |
3 - 4 m3/hr |
| Steam |
5 - 7 kg/hr |
|
Measurement of each unit
|
| Automatic Heald Cleaning Machine |
1,300 kgs (G/W.), 320 cft. |
| Sub-Cleaning Tank |
200 kgs (G/W.), 100 cft. |
| Dryer |
450 kgs (G/W.), 140 cft. |
|
| |
|

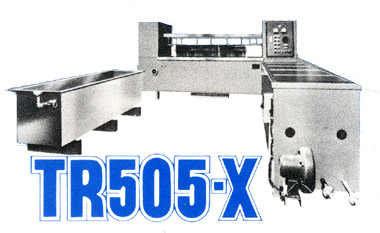

 AUTOMATIC
HEALD CLEANING MACHINE TR505-X
Features
 The
HEALD is cleaned by the special inserted brush with water quickly.
This is the specialized cleaning machine for the HEALD.
This
machine is fitted with the automatic controlling device of time
and temperature.
Easy and brief operation.
Effectively more, in combination with a Sub-cleaning Tank, a Dryer
and a Heald carrier.
|
 |
